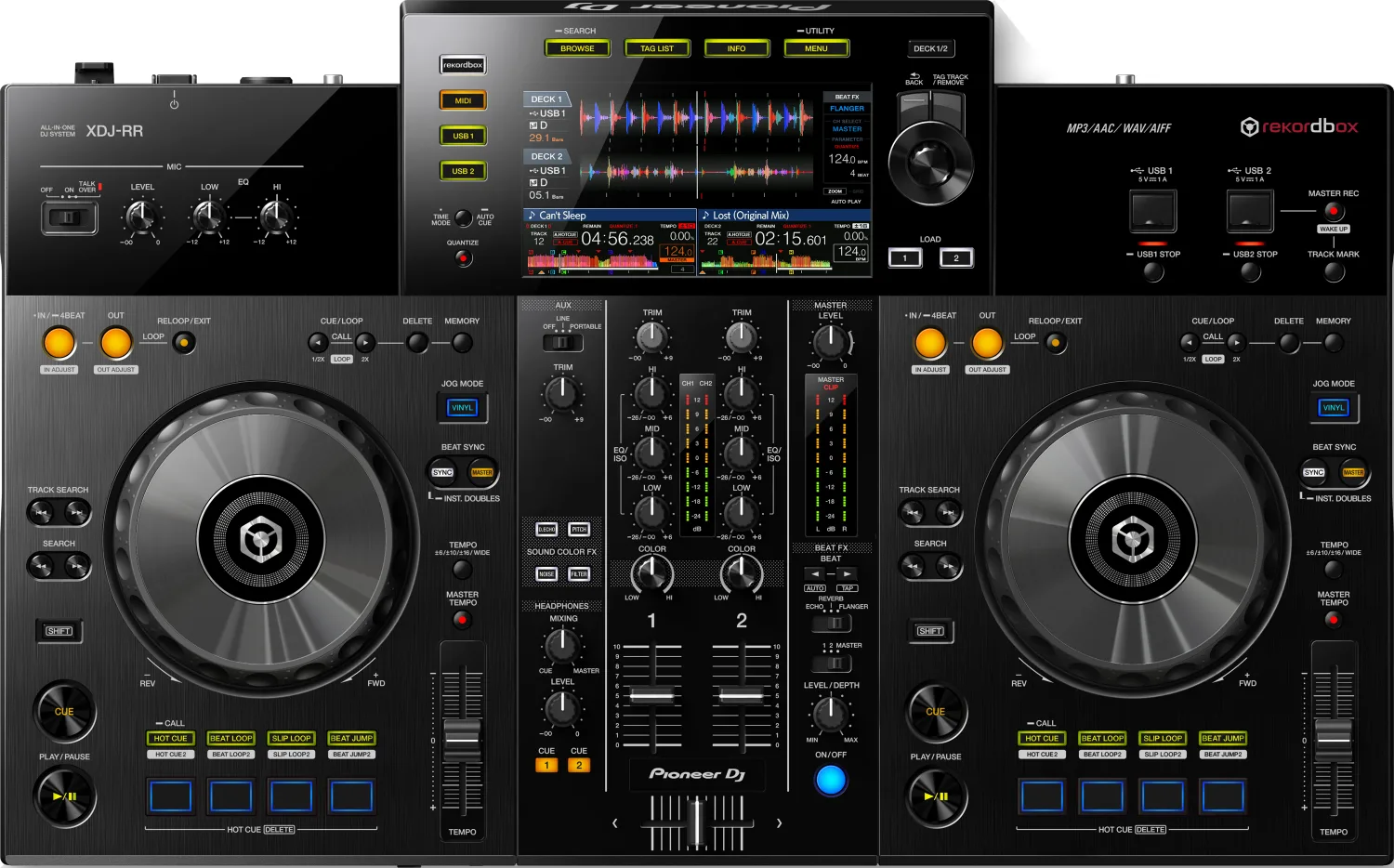

Pioneer DJ XDJ-RR – VirtualDJ scripts & mapping

Take your performances to the next level with the XDJ-RR all-in-one DJ system. This 2-channel DJ solution inherits design traits and essential features from professional Pioneer NXS2 multi player and mixer and packs it all into one lightweight, portable piece of kit. As a result, the XDJ-RR will help you become familiar with club-standard gear as you transition from DJing at home to commanding parties, bars, and soon, clubs.

Keys unconfirmed

Tap a control.

Key names are not confirmed, so these controls are not mappable yet.

Type: all-in-one controller
Decks: 4
Mixer channels: 2

Supported features

4-deck deck
2-channel mixer
Built-in sound card
Touch-sensitive jogwheels
Drum/Trigger pads
Effect section
Load and browse tracks
Headphones output
Microphone input
Display monitors
ModernEQs

Known controls

Official MIDI message list. Showing 95 of 95.

left LOOP IN / 4BEAT (IN ADJUST) · note 6, 69 · ch 1/3
left LOOP OUT (OUT ADJUST) · note 7 · ch 1/3
left RELOOP/EXIT · note 8 · ch 1/3
left CUE/LOOP CALL ◀ (1/2X) · note 12 · ch 1/3
left CUE/LOOP CALL ▶ (2X) · note 11 · ch 1/3
left DELETE · note 13 · ch 1/3
left MEMORY · note 10 · ch 1/3
left JOG (platter + wheel side, jog display) · cc 16, 33, 34, 38, 41, 48, 51, 54 · ch 1/3 · note 32, 72 · ch 1/3
left JOG MODE (VINYL) · note 18 · ch 1/3
left BEAT SYNC (long: INST. DOUBLES) · note 31, 71 · ch 1/3
left MASTER · note 30 · ch 1/3
left TEMPO ±6/±10/±16/WIDE · note 16 · ch 1/3
left MASTER TEMPO · note 17 · ch 1/3
left TEMPO · cc 0 · ch 1/3
left TRACK SEARCH ◀◀| · note 5 · ch 1/3
left TRACK SEARCH |▶▶ · note 4 · ch 1/3
left SEARCH ◀◀ · note 3 · ch 1/3
left SEARCH ▶▶ · note 2 · ch 1/3
left CUE · note 1 · ch 1/3
left PLAY/PAUSE · note 0 · ch 1/3
left HOT CUE · note 34, 38 · ch 1/3
left 1 · note 0, 8, 16, 24, 32, 40, 48, 56, 64, 72, 80, 88, 96, 104, 112, 120 · ch 6/8
left BEAT LOOP · note 35, 39 · ch 1/3
left 2 · note 1, 9, 17, 25, 33, 41, 49, 57, 65, 73, 81, 89, 97, 105, 113, 121 · ch 6/8
left SLIP LOOP · note 36, 40 · ch 1/3
left 3 · note 2, 10, 18, 26, 34, 42, 50, 58, 66, 74, 82, 90, 98, 106, 114, 122 · ch 6/8
left BEAT JUMP · note 37, 41 · ch 1/3
left 4 · note 3, 11, 19, 27, 35, 43, 51, 59, 67, 75, 83, 91, 99, 107, 115, 123 · ch 6/8
right LOOP IN / 4BEAT (IN ADJUST) · note 6, 69 · ch 2/4
right LOOP OUT (OUT ADJUST) · note 7 · ch 2/4
right RELOOP/EXIT · note 8 · ch 2/4
right CUE/LOOP CALL ◀ (1/2X) · note 12 · ch 2/4
right CUE/LOOP CALL ▶ (2X) · note 11 · ch 2/4
right DELETE · note 13 · ch 2/4
right MEMORY · note 10 · ch 2/4
right JOG (platter + wheel side, jog display) · cc 16, 33, 34, 38, 41, 48, 51, 54 · ch 2/4 · note 32, 72 · ch 2/4
right JOG MODE (VINYL) · note 18 · ch 2/4
right BEAT SYNC (long: INST. DOUBLES) · note 31, 71 · ch 2/4
right MASTER · note 30 · ch 2/4
right TEMPO ±6/±10/±16/WIDE · note 16 · ch 2/4
right MASTER TEMPO · note 17 · ch 2/4
right TEMPO · cc 0 · ch 2/4
right TRACK SEARCH ◀◀| · note 5 · ch 2/4
right TRACK SEARCH |▶▶ · note 4 · ch 2/4
right SEARCH ◀◀ · note 3 · ch 2/4
right SEARCH ▶▶ · note 2 · ch 2/4
right CUE · note 1 · ch 2/4
right PLAY/PAUSE · note 0 · ch 2/4
right HOT CUE · note 34, 38 · ch 2/4
right 1 · note 0, 8, 16, 24, 32, 40, 48, 56, 64, 72, 80, 88, 96, 104, 112, 120 · ch 7/9
right BEAT LOOP · note 35, 39 · ch 2/4
right 2 · note 1, 9, 17, 25, 33, 41, 49, 57, 65, 73, 81, 89, 97, 105, 113, 121 · ch 7/9
right SLIP LOOP · note 36, 40 · ch 2/4
right 3 · note 2, 10, 18, 26, 34, 42, 50, 58, 66, 74, 82, 90, 98, 106, 114, 122 · ch 7/9
right BEAT JUMP · note 37, 41 · ch 2/4
right 4 · note 3, 11, 19, 27, 35, 43, 51, 59, 67, 75, 83, 91, 99, 107, 115, 123 · ch 7/9
ch1 TRIM · cc 1, 12 · ch 5
ch1 HI · cc 2, 14 · ch 5
ch1 MID · cc 3, 15 · ch 5
ch1 LOW · cc 4, 21 · ch 5
ch1 COLOR (ch 1) · cc 5, 22 · ch 5
ch1 Channel fader 1 · cc 17, 19 · ch 5
ch1 HEADPHONES CUE 1 · cc 70, 72 · ch 5
ch1 LOAD 1 · note 81 · ch 1/3
ch2 TRIM · cc 6, 80 · ch 5
ch2 HI · cc 7, 81 · ch 5
ch2 MID · cc 8, 92 · ch 5
ch2 LOW · cc 9, 82 · ch 5
ch2 COLOR (ch 2) · cc 10, 83 · ch 5
ch2 Channel fader 2 · cc 18, 20 · ch 5
ch2 HEADPHONES CUE 2 · cc 71, 73 · ch 5
ch2 LOAD 2 · note 81 · ch 2/4
CH1 / CH2 level meters · cc 2 · ch 1/2/3/4
Crossfader · cc 11 · ch 5
AUX OFF / LINE / PORTABLE · cc 88, 89, 90 · ch 5
AUX TRIM · cc 93 · ch 5
SOUND COLOR FX D.ECHO · cc 106, 127 · ch 5
SOUND COLOR FX PITCH · cc 86, 125 · ch 5
SOUND COLOR FX NOISE · cc 85, 124 · ch 5
SOUND COLOR FX FILTER · cc 87, 126 · ch 5
HEADPHONES MIXING · cc 27 · ch 5
HEADPHONES LEVEL · cc 26 · ch 5
MASTER LEVEL · cc 24 · ch 5
BEAT ◀ (AUTO) · cc 76, 120 · ch 5
BEAT ▶ (TAP) · cc 77, 121 · ch 5
BEAT FX ECHO / REVERB / FLANGER · cc 50, 54, 55, 104, 110, 122 · ch 5
BEAT FX CH SELECT 1 / 2 / MASTER · cc 34, 35, 41, 44, 56, 63 · ch 5
LEVEL/DEPTH · cc 91, 119 · ch 5
BEAT FX ON/OFF · cc 52, 64 · ch 5
DECK1/2 · cc 102 · ch 1/2/3/4
BACK · note 50, 95 · ch 1
TAG TRACK/REMOVE · note 48, 98 · ch 1
Rotary selector (push) · cc 79, 96 · ch 1 · note 51, 97 · ch 1
TIME MODE / AUTO CUE · note 14, 15 · ch 1
QUANTIZE · note 9 · ch 1
