Pioneer DJ DDJ-SB3 – VirtualDJ scripts & mapping

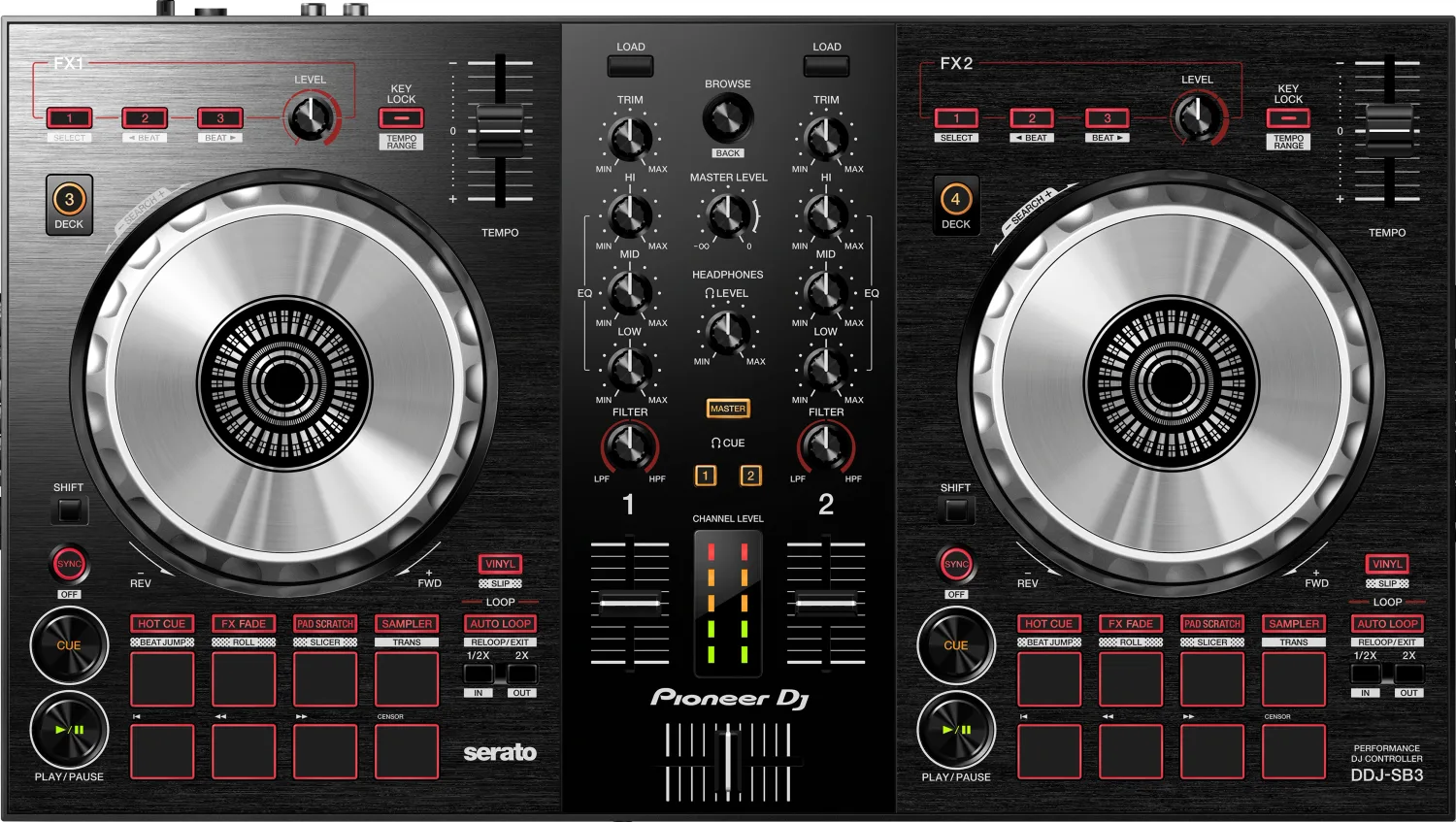

All of the features were designed to be where you need them, when you need them. The layout inherits elements from Pioneer DJ's DDJ-S series with jog wheels, Performance Pads, play and cue buttons, independent Auto Loop buttons and all knobs and fader positions arranged in an easy-to-reach way that mimics professional gear.

Keys unconfirmed

Tap a control.

Key names are not confirmed, so these controls are not mappable yet.

Type: all-in-one controller
Decks: 4
Mixer channels: 2

Supported features

4-deck deck
2-channel mixer
Built-in sound card
Touch-sensitive jogwheels
Drum/Trigger pads
Effect section
Load and browse tracks
Headphones output
Microphone input
ModernEQs

Known controls

Official MIDI message list. Showing 79 of 79.

left FX1-1 ON · note 71, 99 · ch 5
left FX1-2 ON · note 72, 100 · ch 5
left FX1-3 ON · note 73, 101 · ch 5
left FX1 LEVEL · cc 2, 4, 6, 18 · ch 5
left KEY LOCK · note 26, 96 · ch 1/3
left DECK (deck 1/3 or 2/4; indicator lit by the unit) · note 114, 115 · ch 1/3
left TEMPO · cc 0, 5 · ch 1/3
left JOG DIAL (platter + wheel side) · cc 31, 33, 34, 35, 38 · ch 1/3 · note 54, 103 · ch 1/3
left SHIFT · note 63 · ch 1/3
left SYNC · note 88, 92 · ch 1/3
left CUE · note 12, 72 · ch 1/3
left PLAY/PAUSE · note 11, 71 · ch 1/3
left HOT CUE · note 27, 105 · ch 1/3
left FX FADE · note 30, 107 · ch 1/3
left PAD SCRATCH · note 32, 109 · ch 1/3
left SAMPLER · note 34, 110 · ch 1/3
left 1 · note 0, 8, 16, 24, 32, 40, 48, 56, 64, 72, 80, 88, 96, 104, 112, 120 · ch 8/10
left 2 · note 1, 9, 17, 25, 33, 41, 49, 57, 65, 73, 81, 89, 97, 105, 113, 121 · ch 8/10
left 3 · note 2, 10, 18, 26, 34, 42, 50, 58, 66, 74, 82, 90, 98, 106, 114, 122 · ch 8/10
left 4 · note 3, 11, 19, 27, 35, 43, 51, 59, 67, 75, 83, 91, 99, 107, 115, 123 · ch 8/10
left 5 · note 4, 12, 20, 28, 36, 44, 52, 60, 68, 76, 84, 92, 100, 108, 116, 124 · ch 8/10
left 6 · note 5, 13, 21, 29, 37, 45, 53, 61, 69, 77, 85, 93, 101, 109, 117, 125 · ch 8/10
left 7 · note 6, 14, 22, 30, 38, 46, 54, 62, 70, 78, 86, 94, 102, 110, 118, 126 · ch 8/10
left 8 · note 7, 15, 23, 31, 39, 47, 55, 63, 71, 79, 87, 95, 103, 111, 119, 127 · ch 8/10
left VINYL · note 23, 64 · ch 1/3
left AUTO LOOP · note 20, 80 · ch 1/3
left LOOP 1/2X · note 18, 97 · ch 1/3
left LOOP 2X · note 19, 98 · ch 1/3
right FX2-1 ON · note 71, 99 · ch 6
right FX2-2 ON · note 72, 100 · ch 6
right FX2-3 ON · note 73, 101 · ch 6
right FX2 LEVEL · cc 2, 4, 6, 18 · ch 6
right KEY LOCK · note 26, 96 · ch 2/4
right DECK (deck 1/3 or 2/4; indicator lit by the unit) · note 114, 115 · ch 2/4
right TEMPO · cc 0, 5 · ch 2/4
right JOG DIAL (platter + wheel side) · cc 31, 33, 34, 35, 38 · ch 2/4 · note 54, 103 · ch 2/4
right SHIFT · note 63 · ch 2/4
right SYNC · note 88, 92 · ch 2/4
right CUE · note 12, 72 · ch 2/4
right PLAY/PAUSE · note 11, 71 · ch 2/4
right HOT CUE · note 27, 105 · ch 2/4
right FX FADE · note 30, 107 · ch 2/4
right PAD SCRATCH · note 32, 109 · ch 2/4
right SAMPLER · note 34, 110 · ch 2/4
right 1 · note 0, 8, 16, 24, 32, 40, 48, 56, 64, 72, 80, 88, 96, 104, 112, 120 · ch 9/11
right 2 · note 1, 9, 17, 25, 33, 41, 49, 57, 65, 73, 81, 89, 97, 105, 113, 121 · ch 9/11
right 3 · note 2, 10, 18, 26, 34, 42, 50, 58, 66, 74, 82, 90, 98, 106, 114, 122 · ch 9/11
right 4 · note 3, 11, 19, 27, 35, 43, 51, 59, 67, 75, 83, 91, 99, 107, 115, 123 · ch 9/11
right 5 · note 4, 12, 20, 28, 36, 44, 52, 60, 68, 76, 84, 92, 100, 108, 116, 124 · ch 9/11
right 6 · note 5, 13, 21, 29, 37, 45, 53, 61, 69, 77, 85, 93, 101, 109, 117, 125 · ch 9/11
right 7 · note 6, 14, 22, 30, 38, 46, 54, 62, 70, 78, 86, 94, 102, 110, 118, 126 · ch 9/11
right 8 · note 7, 15, 23, 31, 39, 47, 55, 63, 71, 79, 87, 95, 103, 111, 119, 127 · ch 9/11
right VINYL · note 23, 64 · ch 2/4
right AUTO LOOP · note 20, 80 · ch 2/4
right LOOP 1/2X · note 18, 97 · ch 2/4
right LOOP 2X · note 19, 98 · ch 2/4
ch1 LOAD (L) · note 70, 72, 88, 96 · ch 7
ch1 TRIM · cc 4 · ch 1/3
ch1 HI · cc 7 · ch 1/3
ch1 MID · cc 11 · ch 1/3
ch1 LOW · cc 15 · ch 1/3
ch1 FILTER · cc 23, 25 · ch 7
ch1 CUE 1 (headphones) · note 84, 104 · ch 1/3
ch1 Channel fader 1 · cc 19 · ch 1/3 · note 81, 82, 102 · ch 1/3
ch1 CHANNEL LEVEL (ch 1) · cc 2 · ch 1/3
ch2 LOAD (R) · note 71, 73, 89, 97 · ch 7
ch2 TRIM · cc 4 · ch 2/4
ch2 HI · cc 7 · ch 2/4
ch2 MID · cc 11 · ch 2/4
ch2 LOW · cc 15 · ch 2/4
ch2 FILTER · cc 24, 26 · ch 7
ch2 CUE 2 (headphones) · note 84, 104 · ch 2/4
ch2 Channel fader 2 · cc 19 · ch 2/4 · note 81, 82, 102 · ch 2/4
ch2 CHANNEL LEVEL (ch 2) · cc 2 · ch 2/4
BROWSE (push: BACK with SHIFT) · cc 64, 100 · ch 7 · note 65, 66 · ch 7
MASTER LEVEL · cc 8 · ch 7
HEADPHONES LEVEL · cc 13 · ch 7
MASTER (headphones cue) · note 91, 120 · ch 7
Crossfader · cc 31 · ch 7 · note 81, 82, 102 · ch 1/2/3/4
